Model: MT-PL
Working voltage:12.8V
Battery type: lithium iron phosphate（LFP）
Lighting power:20W~50W
Suggested installation height: 4~10m
The Plate series integrates solar panels, lithium batteries, controllers, and light sources in one, which is convenient for transportation and easy to install.
Using LFP batteries prolongs the lifetime and is friendly to the environment.

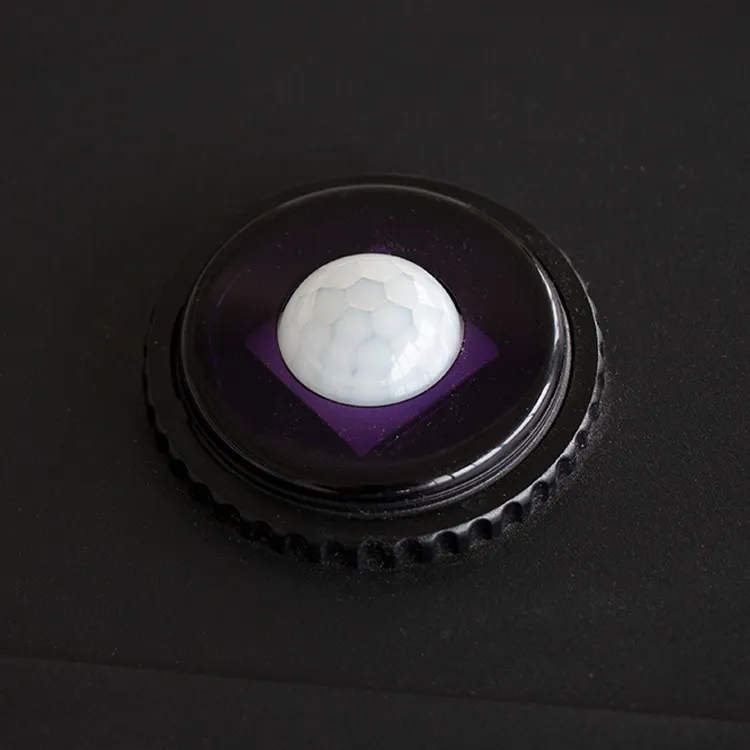

Providing the option of a motion sensor, which detects moving objects around the light, automatically adjusts the LED light output from full brightness to dimmer to save power and cost.
When a moving object approaches (32-39 feet), the light will automatically work at high brightness, and turn to dim when the object leaves to save power (30% power)

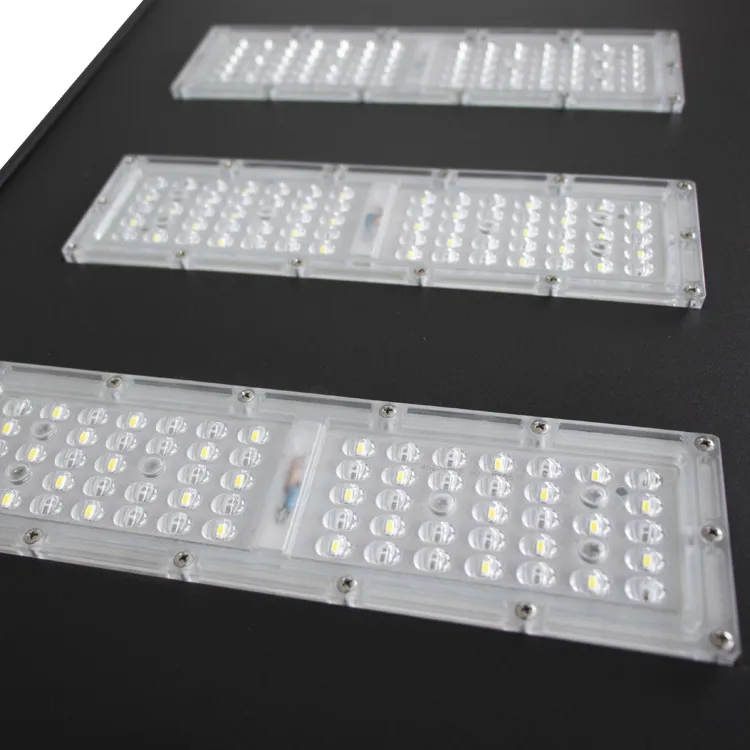

Using LED module, good heat dissipation, easy for maintenance

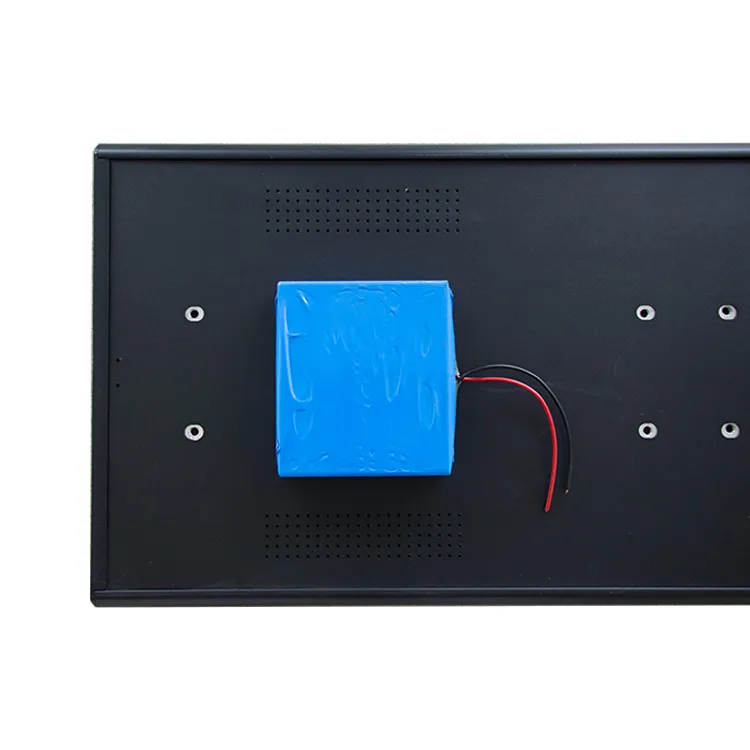

Original branded LiFePo4(LFP battery) with cycle life 2500 above, lifetime can reach 10 years more, perfect high temperature safety performance
With high efficiency and low failure rate, IP68, constant current function, Overcharge and over discharge protection

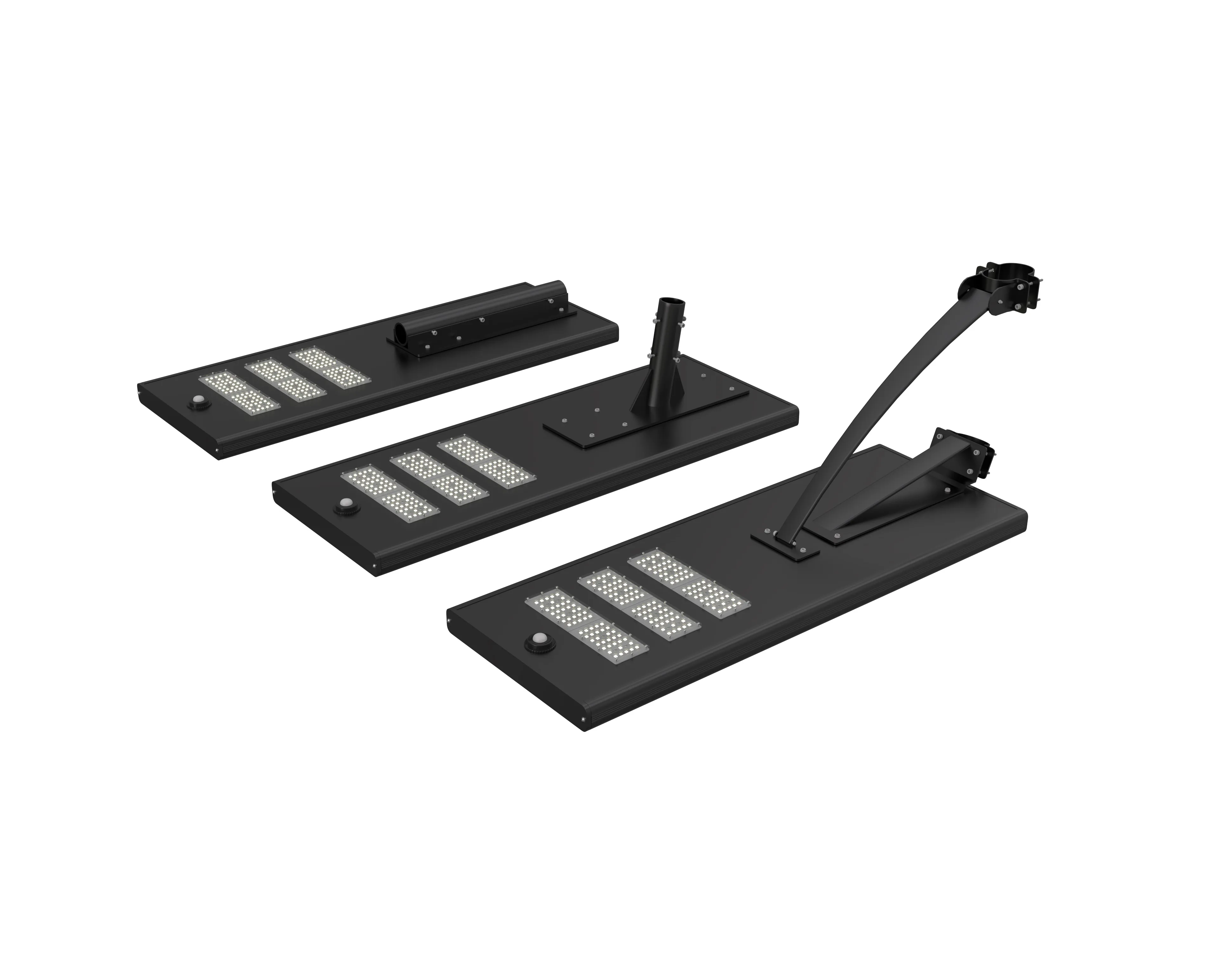

3 ways of mounting for options Top mounting Arm mounting Hoop mounting for different requirements
Conversation efficiency 20% above, lifespan more than 20 years
| Model No. | MT-PL-001 | MT-PL-003 | MT-PL-004 | MT-PL-007 | MT-PL-008 | |||||
| Rated Power | 20W(Model) | 20W | 40W(Model) | 40W | 40W(Model) | 40W | 50W(Model) | 50W | 50W(Model) | 50W |
| System Voltage | DC12.8V | DC12.8V | DC12.8V | DC12.8V | DC12.8V | DC12.8V | DC12.8V | DC12.8V | DC12.8V | DC12.8V |
| Lithium Battery | 24AH | 24AH | 36AH | 48AH | 36AH | 48AH | 48AH | 60AH | 48AH | 60AH |
| Solar Panel | 75W | 75W | 95W | 95W | 95W | 95W | 140W | 140W | 140W | 140W |
| Light Source | 3030 | |||||||||
| Light Distribution | Bat-Wing light distribution（150°×75°） | |||||||||
| Light Efficiency | 110~150LM/W | |||||||||
| Color Temperature | 3000K~6000K | |||||||||
| CRI | ≥Ra70 | |||||||||
| IP Rating | IP65 | |||||||||
| Working Temperature | -10℃~+60℃ | |||||||||
| Working humidity | 10%-90%rh | |||||||||
| LED Lifespan | 50000H~100000H | |||||||||
| Controller | 6A30WHuman body induction | 8A40WHuman body induction | 10A60WHuman body induction | |||||||
| Mount Diameter | φ60mm | |||||||||
| Lamp Dimension | 368×1210mm | 378×1210mm | 378×1490mm | 378×1490mm | 378×1490mm | 378×1490mm | 550×1480mm | 550×1480mm | 550×1480mm | 550×1480mm |
| Lamp Weight(Net weight) | 12.3kg | 12.1kg | 15.4kg | 16.4kg | 13.9kg | 12.3kg | 12.1kg | 15.4kg | 16.4kg | 13.9kg |
| Package Dimension (Sleeve not included) | 455×1295×125mm | 455×1295×125mm | 455×1575×125mm | 455×1575×125mm | 455×1575×125mm | 455×1575×125mm | 625×1560×125mm | 625×1560×125mm | 625×1560×125mm | 625×1560×125mm |
| Suggested Mount Height | 4m~6m | 4m~6m | 6m~8m | 6m~8m | 6m~8m | 6m~8m | 8m | 8m | 8m | 8m |
| Warranty | 3 Years | |||||||||
