Model: MT-TR
Working voltage:12V/24V
Battery type: lithium iron phosphate（LFP）
Lighting power:30-200W
Suggested installation height:6-15M

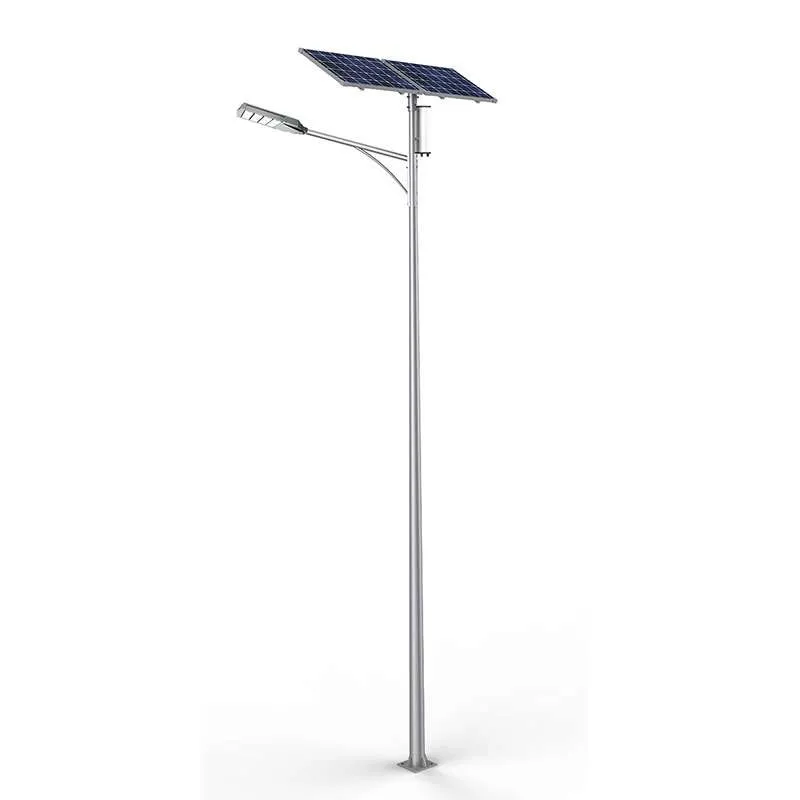

Split solar street light also known as all-in-three type, adopts Split Design concept, with the lithium battery hanging under the solar panels or on the pole. The split designed structure makes high-power solar panels and lithium batteries possible, Therefore, large-power LED lamps are able to operate at high brightness all night.

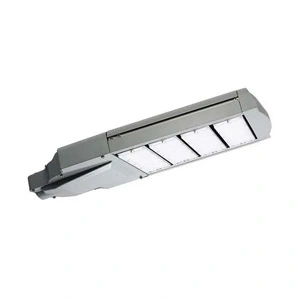

Using LEDs, good heat dissipation, is easy for maintenance.

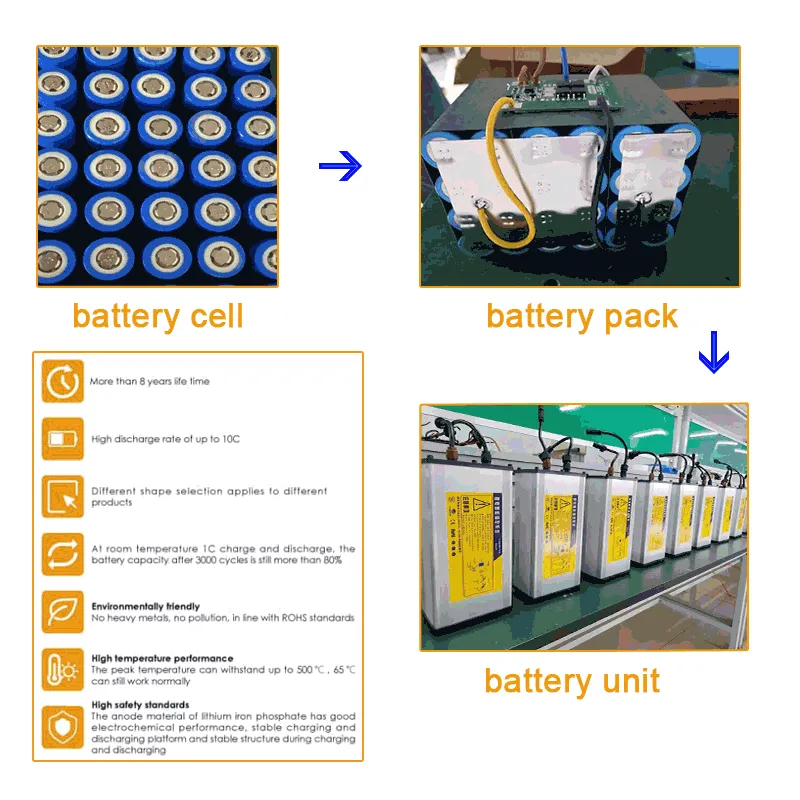

Original branded LiFePO4(LFP battery) with cycle life of 2000 or above, the lifetime can reach 3 years more, perfect high-temperature safety performance
Conversation efficiency 20% above, lifespan more than 20 years
Q235 steel plate, hot dip galvanizing and powder coated surface treating, wind resisting 36.9m/s
| Item | Specifications |
| Model No | MT-S-LED01 |
| Rated Power | 30-200W(customization) |
| Working voltage | 12V/24V |
| Lithium battery | 20-150AH(customization) |
| Solar panel | 45-800W(customization) |
| Controller | 10A/15A/20A/25A(customization) |
| Light source | SMD 3030(Philip, Cree, Bridge lux, etc., (customizable) |
| Lamp Luminous Flux (lm) | 4500-30000lm |
| Material | Lamp body: die-cast aluminum Solar panel: tempered glass+mono/polycrystalline silicon Battery: LFP battery |
| Luminous efficiency of single LED chip | ≥180lm/W |
| Light distribution | Bat-wing distribution |
| Dimmer support | Yes |
| Color temperature | 3000-6500K |
| CRI | ≥Ra70 |
| Working temperature | -10~60℃ |
| IP Grade | IP65 |
| IK Grade | IK08 |
| Charging time | 5-6 hours under effective illumination |
| Charging temperature | 0~60℃ |
| Discharging time | 10-50 hours with different power consumption |
| Discharging temperature | -25~60℃ |
| Rainy day backup | According to local weather conditions, light up every day is available |
| Working mode | Auto photo switch ON/OFF timing + dimming (+PIR sensor optional) |
| Fixed diameter | Drive pipe: ∅60mm |
| suggested installation height | 6-15M |
| lifetime | Solar panel: more than 25 years Light source:3-5 years Battery:3-5 years |
| Warranty | 2 years |
